Product Basic Information

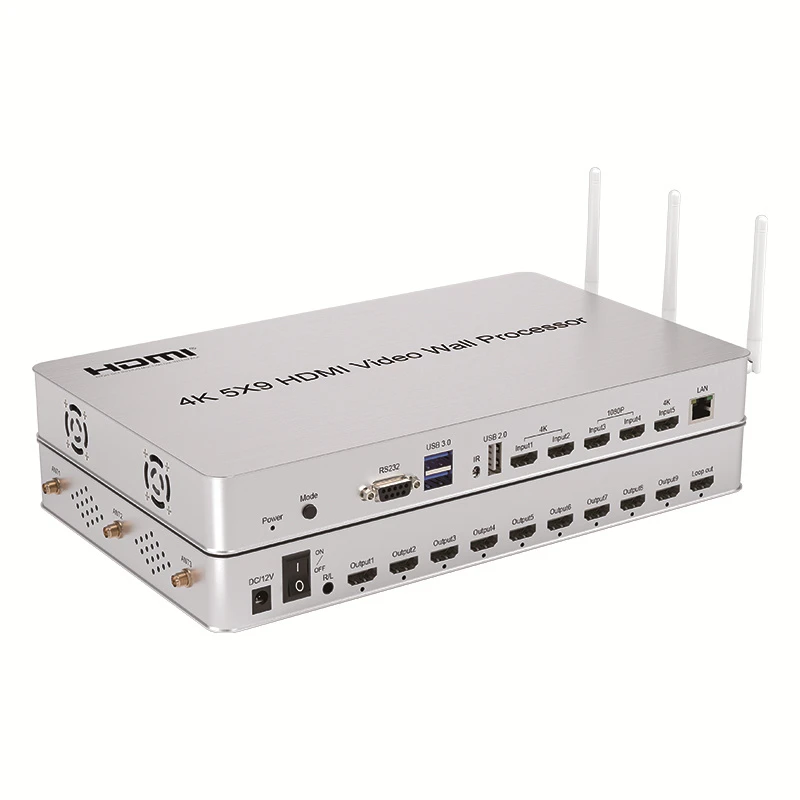

Lub 5x9 Video Phab Ntsa Controller yog tsim los rau siab -stakes daim ntawv thov qhov kev pom tseeb thiab kev ntseeg siab tshaj plaws. Nws hloov pauv cov qauv HDMI cov peev txheej rau hauv cov phab ntsa uas nthuav dav video los ntawm kev faib HD cov teeb liab rau hauv cuaj ntu, muab tso rau cov khoom siv xws li LCD panels, rear- projection units, lossis TVs. Cov ntsiab lus tseem ceeb suav nrog kev txhawb nqa rau ntau qhov kev daws teeb meem txog li 4K @ 60Hz, lub siab siab HDMI lub voj - tawm rau kev saib xyuas cov duab spliced, thiab kev sib xyaw ua ke 3.5 hli lub tso suab lub mloog pob ntseg rau lub suab synchronization. Compact thiab neeg siv-tus phooj ywg, nws ntsuas tsuas yog 305 x 184 x 37 mm thiab hnyav 1907g, haum seamlessly rau hauv khib-mounted lossis desktop installations. Powered los ntawm ib tug universal AC adapter (100-240V input, 12V DC / 5A tso zis), nws ua hauj lwm ntseeg tau nyob rau hauv kub ntawm -10℃mus rau +45 degree, kos ib tug siab tshaj plaws tam sim no ntawm 4A.
Khoom Specifications Table
|
Specification |
Paub meej |
|
HDMI input daws teeb meem |
Mus txog 3840 x 2160 @ 60Hz (3x 4K inputs, 2x 1080p inputs) |
|
HDMI tso zis daws teeb meem |
Mus txog 1920 x 1080 @ 60Hz (9 tso zis) |
|
Txhawb suab hom |
Lub tso suab |
|
Input Cable Length |
Tsawg dua lossis sib npaug li 8m (AWG26 HDMI tus qauv cable) |
|
Output Cable Length |
Tsawg dua lossis sib npaug li 10m (AWG26 HDMI tus qauv cable) |
|
Kev ua haujlwm siab tshaj plaws tam sim no |
4A |
|
Fais fab Adapter |
Tawm tswv yim: AC 100-240V (50/60Hz); Tawm tswv yim: 12V DC / 5A |
|
Kev khiav hauj lwm qhov kub thiab txias |
-10℃rau +45 degree |
|
Qhov Loj (L x W x H) |
305 x 184 x 37 mm |
|
Qhov hnyav |
1907g |
|

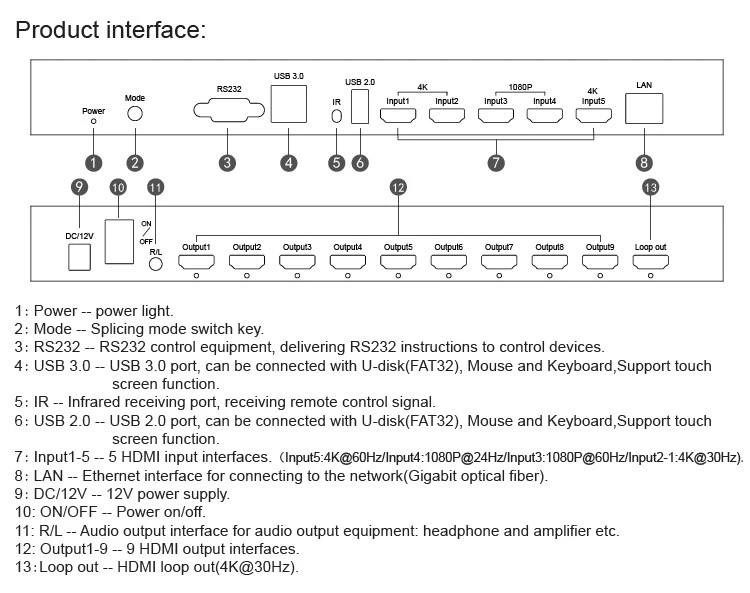

Chaw nres nkoj ntxiv |
1x HDMI voj- tawm (daim iav spliced duab), 1x 3.5mm lub tso suab lub mloog pob ntseg tawm |
|
Tswj kev xaiv |
Chaw taws teeb tswj, pem hauv ntej nyees khawm, RS232 |
|
Kev sib txuas nta |
Txhawb WiFi thiab Bluetooth |
Product Function Features
Tus maub los no sawv tawm hauv AV kev koom ua ke toj roob hauv pes los ntawm kev muab kev hloov pauv tsis muaj qhov nyuaj. Nov yog qhov teeb meem nws sib nrug:
Ntau hom Splicing Hom:Xaiv los ntawm kab rov tav lossis ntsug layouts, suav nrog cov kev teeb tsa nrov xws li 1x2, 2x2, 2x3, 2x4, 3x2, 3x3, thiab 4x2 - zoo meej rau kev cai video phab ntsa teeb.
Advanced Segmentation Options:Txhawb PIP (Duab-hauv-Duab), POP (Daim duab- ntawm-Duab), PBP (Daim duab-los ntawm-Duab), ib leeg / dual / plaub- duab cais. Txhua lub qhov rais tuaj yeem hloov kho nws tus kheej, txav mus los, lossis zoomed siv tus nas yooj yooj yim rub tswj, nrog lub suab hloov ntawm qhov nyem nrawm ntawm lub ces kaum.
Kov -Enabled thiab Wireless:Ua -hauv kov npo ua haujlwm ua ke nrog WiFi thiab Bluetooth rau kev ua haujlwm yooj yim thiab kev sib koom ua ke wireless.
Crystal-Ntawm cov zis:Tsis muaj stretching, deformation, los yog compression - inputs nyob twj ywm pristine rau ntse, professional - qib kev pom.
Multi-Input Handling:Seamlessly tso tawm mus txog tsib HDMI qhov chaw thoob plaws phab ntsa, nrog lub voj voog - tawm rau qhov tiag - lub sijhawm saib ua ntej.
Kev tswj tsis tau yooj yim:Hloov hom ntawm tej thaj chaw deb, nyees khawm, lossis RS232 rau seamless automation hauv cov chav tswj lossis kev sib xyaw ua ke.
Cov yam ntxwv no ua rau nws mus-rau rau cov neeg tsim khoom uas xav tau kev ua haujlwm txhim khu kev qha yam tsis muaj hassle ntawm kev cai coding lossis nquag tweaks.
Cov Khoom Siv Khoom Siv
Tsim los rau kev lag luam uas xav tau siab - cuam tshuam qhov pom, 5x9 Video Phab Ntsa Controller ua tau zoo nyob rau hauv cov xwm txheej uas cov ntaub ntawv tshaj tawm raws li cov neeg tuaj koom. Nyob rau hauv ultra-siab-txhais video soj ntsuam, nws sib sau ntau lub koob yees duab pub rau hauv cov mosaic cohesive rau kev saib xyuas zoo hauv cov chaw tswj xyuas. Rau cov phab ntsa loj loj hauv cov chaw ua haujlwm lossis cov chaw tshaj tawm hauv xov tooj cua, nws muab cov ntsiab lus dynamic playback yam tsis muaj lag. Cov khw muag khoom leverage nws rau cov khw muag khoom cov ntxaij vab tshaus, rotating promotions hla cuaj vaj huam sib luag los txhawb ko taw tsheb. Exhibition halls thiab kev lag luam qhia tau txais txiaj ntsig los ntawm nws cov segmentation hom, tsim cov kev sib tham sib tham uas nyiam cov neeg coob coob. Tshaj li qhov no, nws zoo tagnrho rau cov chaw thauj mus los (piv txwv li, tshav dav hlau digital signage) thiab qhov chaw kawm (piv txwv li, kev hais lus hauv tsev hais plaub), qhov twg scalability thiab clarity drive tiag tiag - ntiaj teb cov txiaj ntsig.
Product Detail Showcase
(Ceeb toom: Raws li qhov no yog cov ntawv nyeem -raws li cov nplooj ntawv nthuav dav, pom cov ntsiab lus zoo li siab-res cov duab feem ntau yuav nthuav tawm cov maub los qhov chaw nres nkoj, LED ntsuas, thiab cov qauv 5x9 phab ntsa hauv kev nqis tes ua. Xav txog ze-ups ntawm HDMI array, ib qho yeeb yaj kiab ntawm PIP zooming, thiab ua ntej / tom qab sib piv cov hlau sib piv{6} sib piv thiab sib piv siab pem hauv ntej vaj huam sib luag rau yooj yim khib kev koom ua ke.)
Product Testimonials
Kos los ntawm kev lag luam tawm tswv yim, cov neeg siv qhuas nws lub ntsaws- thiab- ua si kev ntseeg tau: "Hloov peb qhov kev soj ntsuam teeb tsa rau tus maub los no - flawless 4K inputs hla cuaj saib, tsis muaj teeb meem sib txuas ntxiv," qhia AV integrator los ntawm lub tuam txhab kev ruaj ntseg. Lwm qhov los ntawm cov ntawv muag khoom, "Qhov kev sib hloov thiab kov cov yam ntxwv tau cawm peb teev ntawm kev teeb tsa; pom pom tsis muaj kev cuam tshuam." Cov kev pom zoo no tiag tiag hauv ntiaj teb no qhia txog nws cov ntug hauv kev xa tawm kev tshaj lij, txhawb nqa los ntawm kev tsim kom muaj txiaj ntsig zoo uas tiv taus kev nruj txhua hnub.
Kev Pabcuam Xav
Peb muab qhov tseem ceeb rau koj txoj kev vam meej nrog kev txhawb nqa dav dav: Ua ntej- kev sib tham txog kev muag khoom pab kom tus tswj hwm rau koj qhov teeb tsa, suav nrog kev txheeb xyuas kev sib raug zoo. Tshaj tawm - kev yuav khoom, txaus siab rau kev hloov kho firmware dawb ntawm RS232 rau cov kev xav tau hloov zuj zus, ntxiv rau lub xov tooj kub tshwj xeeb rau kev daws teeb meem. Kev txiav txim ntau B2B tuaj nrog cov nqi txo nqi, cov khoom siv cabling kev cai, thiab ntawm - qhov chaw kawm xaiv. Peb 2 xyoo warranty npog qhov tsis xws luag.
FAQ
Q: Cov kev daws teeb meem twg nws txhawb rau cov khoom siv thiab cov khoom tawm?
A: Nws ua haujlwm txog 4K @ 60Hz ntawm peb lub HDMI inputs thiab 1080p ntawm ob, nrog rau tag nrho cuaj tawm ntawm 1080p @ 60Hz rau kev ua si du.
Q: Kuv puas tuaj yeem tig cov zaub rau kev teeb tsa portrait?
A: Yog, puv -screen 90℃rotation ua haujlwm nyob rau hauv ib qho - duab hom, thiab 180℃rau thawj kab hauv ob- kab splicing - zoo rau ntsug video phab ntsa.
Q: Kuv yuav tswj lub suab li cas ntawm cov ntxaij vab tshaus?
A: Siv lub 3.5 hli tso suab tawm los yog nias lub ces kaum ntawm lub vijtsam los hloov qhov chaw; nws txhawb lub tso suab tawm tswv yim tsis sync poob.
Q: Puas yog nws sib haum nrog thib peb - tog tso saib?
A: kiag li - khub nrog txhua HDMI-enabled LCD, TV, los yog projector, siv tus qauv AWG26 cables mus txog 10m rau outputs.
Q: Lub zog teeb tsa zoo li cas?
A: Universal 100-240V tawm tswv yim ntawm 12V / 5A adapter; qis 4A kos ua kom lub zog ua haujlwm hauv 24/7 ua haujlwm. Yog xav paub ntau ntxiv, thov hu rau peb pab neeg - peb nyob ntawm no los txhim kho koj qhov kev paub ntawm phab ntsa video.
