Product Overview
Qhov no 8-chaw nres nkoj Fast Ethernet hloov muab seamless, siab -kev ua haujlwm sib txuas rau me me- nplai ib puag ncig. Txhua qhov chaw nres nkoj txhawb nqa nws pib- kev sib tham thiab pib MDI / MDIX, tshem tawm qhov xav tau ntawm cov kab sib txuas thiab ua kev sib txuas tiag tiag ntsaws-thiab- ua si. Tsim tshwj xeeb rau kev siv desktop thiab cov chaw ua haujlwm me me, nws muaj txoj hauv kev pheej yig los tsim kom muaj kev ceev, ruaj khov puv-duplex network thaum ua kom lub zog siv qis thiab ua haujlwm ntsiag to.
Technical Specifications
|
Parameter |
Specification |
|
Chaw nres nkoj |
8 × 10/100Mbps adaptive RJ45 chaw nres nkoj |
|
Backplane Bandwidth |
1.6 Gbps ib |
|
Packet Forwarding tus nqi |
2.5 Mbps ib |
|
Cache Loj |
768k wb |
|
MAC Chaw Nyob Table |
1K |
|
Fais fab mov |
Sab nraud DC 5V 1A adapter (5W tag nrho) |
|
Chipset |
RTL 8309 NB |
|
Qhov ntev |
124 × 58 × 26 hli |
|
Ua haujlwm kub |
10℃rau +35 degree |
|
Kev khiav dej num |
20-55% RH (tsis yog -condensing) |
|
Cia Kub |
-40℃rau +50 degree |
|
Cia Humidity |
10-55% RH |
Cov yam ntxwv tseem ceeb thiab cov txiaj ntsig
- Zog-Kev Tsim Nyog: Txais siv tsawg- thev naus laus zis los txo kev siv hluav taws xob thaum tseem nyob ib puag ncig tus phooj ywg- zoo meej rau kev ua haujlwm tas mus li yam tsis muaj kev tsav tsheb.
- Kev Ua Raws Li Cov Qauv: Txhawb nqa tag nrho IEEE 802.3, IEEE 802.3u, thiab IEEE 802.3x raws tu qauv rau kev ua tau zoo Fast Ethernet.
- Yooj Yim Duplex Hom: Txhua qhov chaw nres nkoj txhawb nqa tag nrho -duplex thiab ib nrab- duplex ua haujlwm nrog kev tswj tsis siv neeg khiav (IEEE 802.3x rau puv - duplex) thiab backpressure rau ib nrab -duplex.
- Pib MDI/MDIX: Tsis siv neeg hla kev tshawb nrhiav ntawm txhua qhov chaw nres nkoj- tsis tas yuav txhawj xeeb txog hom kab cable.
- Intelligent Address Management: Tsis siv neeg MAC chaw nyob kev kawm thiab kev laus, ua ke nrog cov khw muag khoom -thiab- hloov mus rau tom ntej thiab thav duab lim kom huv si, yuam kev- xa cov ntaub ntawv dawb.
- Compact thiab ntsiag to: Fanless yas vaj tse kom ua haujlwm ntsiag to thiab yooj yim tso rau ntawm txhua lub desktop.
Cov yam ntxwv no ua ke kom muaj kev ruaj ntseg, tsis muaj teeb meem -kev sib txuas pub dawb nrog lub zog tsawg tsawg thiab kev sib raug zoo siab tshaj plaws.
Daim ntawv thov Scenario
Qhov kev hloov no ua tau zoo hauv txhua hnub me me -network ib puag ncig:
- Tsev Networks: Nthuav koj lub router los txuas lub laptops, gaming consoles, smart TVs, thiab streaming li kom du cov ntaub ntawv hauv zos sib koom thiab tawm xov xwm.
- Cov Chaw Ua Haujlwm me me / Pab Pawg Ua Haujlwm: Txuas lub desktop PCs, tshuab luam ntawv, IP xov tooj, thiab kev sib koom ua ke yam tsis tau nqis peev hauv cov cuab yeej tswj hwm.
- Kev teeb tsa ib ntus: Zoo tagnrho rau kev cob qhia, chav kawm, lossis cov xwm txheej uas xav tau kev sib txuas ceev, txhim khu kev qha.
- Legacy Device Support: Zoo meej rau tes hauj lwm nrog cov cuab yeej qub uas ua haujlwm ntawm 10/100Mbps ceev.
Txhua qhov chaw koj xav tau kev nthuav dav chaw nres nkoj ncaj qha yam tsis muaj qhov nyuaj, qhov hloov pauv no muab tus nqi -cov pob txha zoo.
Product Detail Showcase
Peb cov duab cov khoom qhia txog cov tswv yim tsim:

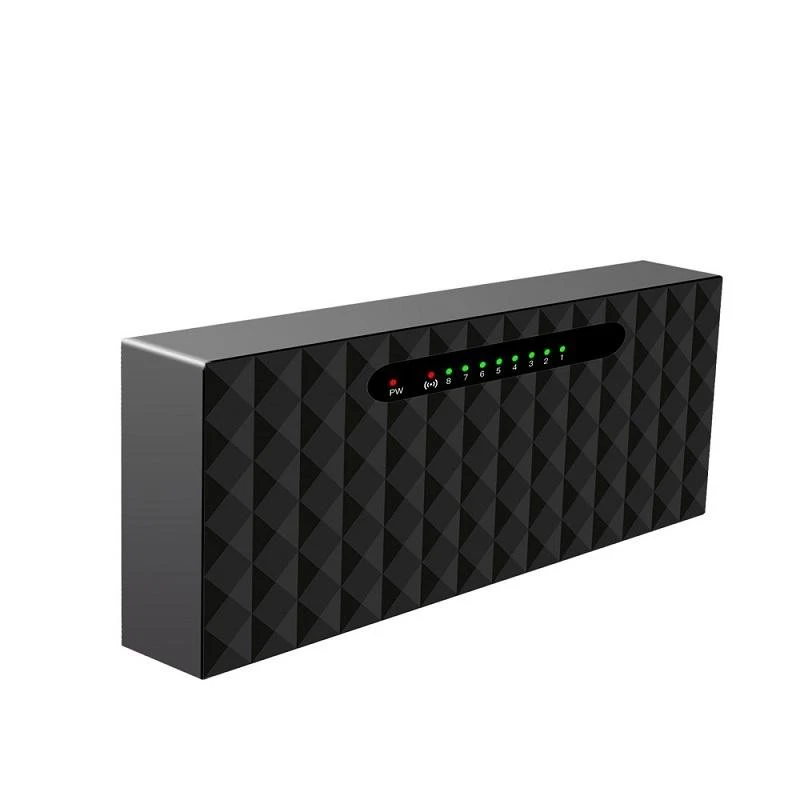

- Pem hauv ntej saib uas qhia cov kab huv ntawm yim RJ45 chaw nres nkoj thiab hloov maj mam LED ntsuas rau lub zog thiab txuas / kev ua haujlwm.
- Sab thiab sab saum toj saib tau hais txog qhov compact yas casing thiab qhov cua qauv rau passive txias.

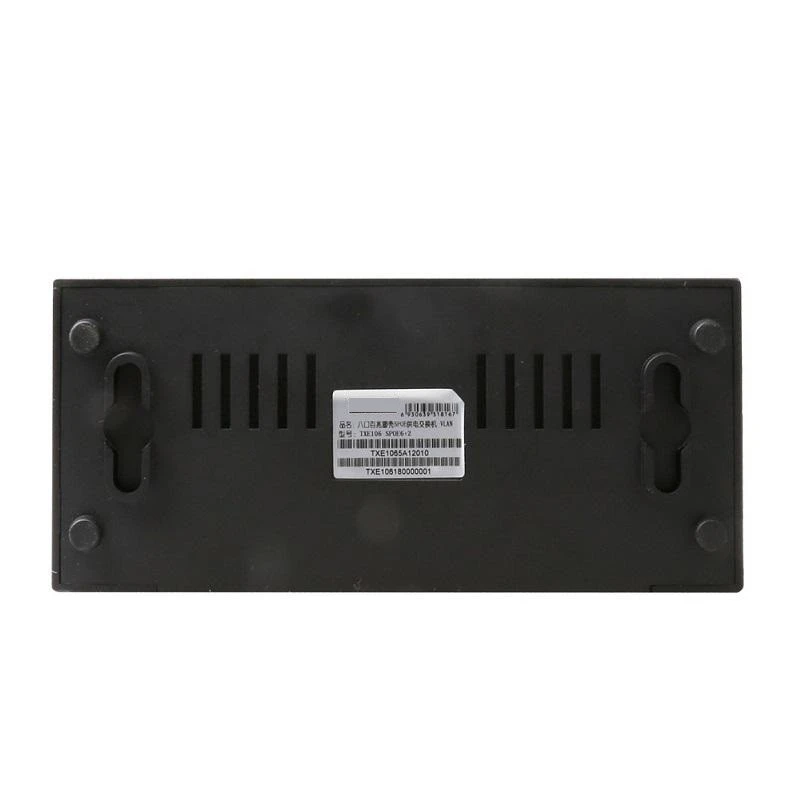

- Sab nraub qaum qhia txog DC lub zog tawm tswv yim thiab ruaj khov uas tsis yog- plam taw rau qhov chaw ruaj khov desktop.
- Kaw-nce ntawm cov chaw nres nkoj thiab LEDs hauv kev ua haujlwm, ua kom pom tseeb cov lus pom zoo txawm tias nyob hauv lub teeb qis.
Cov ntsiab lus no qhia txog kev xav txog engineering tsom rau kev ua haujlwm ntev thiab cov neeg siv yooj yim.
Quality Assurance
Ua nrog RTL8309NB chipset txhim khu kev qha thiab ua raws li cov qauv thoob ntiaj teb Ethernet, qhov kev hloov no tau dhau los kuaj nruj rau kev ruaj ntseg thiab kev sib raug zoo. Lub khw-thiab-rau pem hauv ntej architecture txo cov pob ntawv yuam kev, thaum kev tswj cov dej ntws zoo tiv thaiv kev sib koom tes. Rov qab los ntawm cov cuab yeej pov thawj uas siv ntau lab ntawm kev xa tawm zoo sib xws thoob ntiaj teb, nws muab kev ua tau zoo ib yam uas koj tuaj yeem ntseeg tau.
Cov neeg siv khoom -Kev Pabcuam Thawj
Peb sawv tom qab txhua chav tsev nrog:
- Comprehensive warranty kev pab them nqi thiab teb technical support.
- Dedicated ua ntej/post-kev pab muag.
- Kev txiav txim ntau thiab kev xa khoom yooj yim rau cov neeg siv khoom B2B.
Peb lub hom phiaj yog qhov yooj yim: ua kom koj qhov kev nthuav dav hauv lub network tau yooj yim los ntawm kev yuav khoom mus rau kev siv txhua hnub.
Cov lus nug nquag nug (FAQ)
Q: Puas yog qhov hloov pauv no xav tau kev teeb tsa?
A: Tsis yog -nws tsis muaj kev tswj hwm tag nrho thiab ntsaws-thiab- ua si. Tsuas yog txuas fais fab thiab cables, thiab nws ua haujlwm tam sim ntawd.
Q: Nws puas yuav ua haujlwm nrog ncaj- los ntawm kev sib tw cables?
A: Auto MDI/MDIX tuav ob qho tib si cia li -tsis muaj cov kab tshwj xeeb xav tau.
Q: Nws siv zog npaum li cas?
A: Tsawg heev-feem ntau yog qis dua 5W nrog cov khoom siv hluav taws xob sab nraud suav nrog.
Q: Puas yog cov ntaub ntawv yas ruaj khov txaus rau kev siv txhua hnub?
A: Yog lawm. Lub vaj tse ruaj khov, lub teeb yuag yog tsim los rau qhov chaw ib puag ncig thiab muab cov cua sov zoo heev yam tsis muaj kiv cua.
Q: Nws puas tuaj yeem ua phab ntsa -mounted?
A: Thaum lub desktop feem ntau- taw qhia, qhov loj me thiab lub teeb yuag ua rau phab ntsa lossis hauv qab - rooj mounting tau nrog tus qauv brackets.
